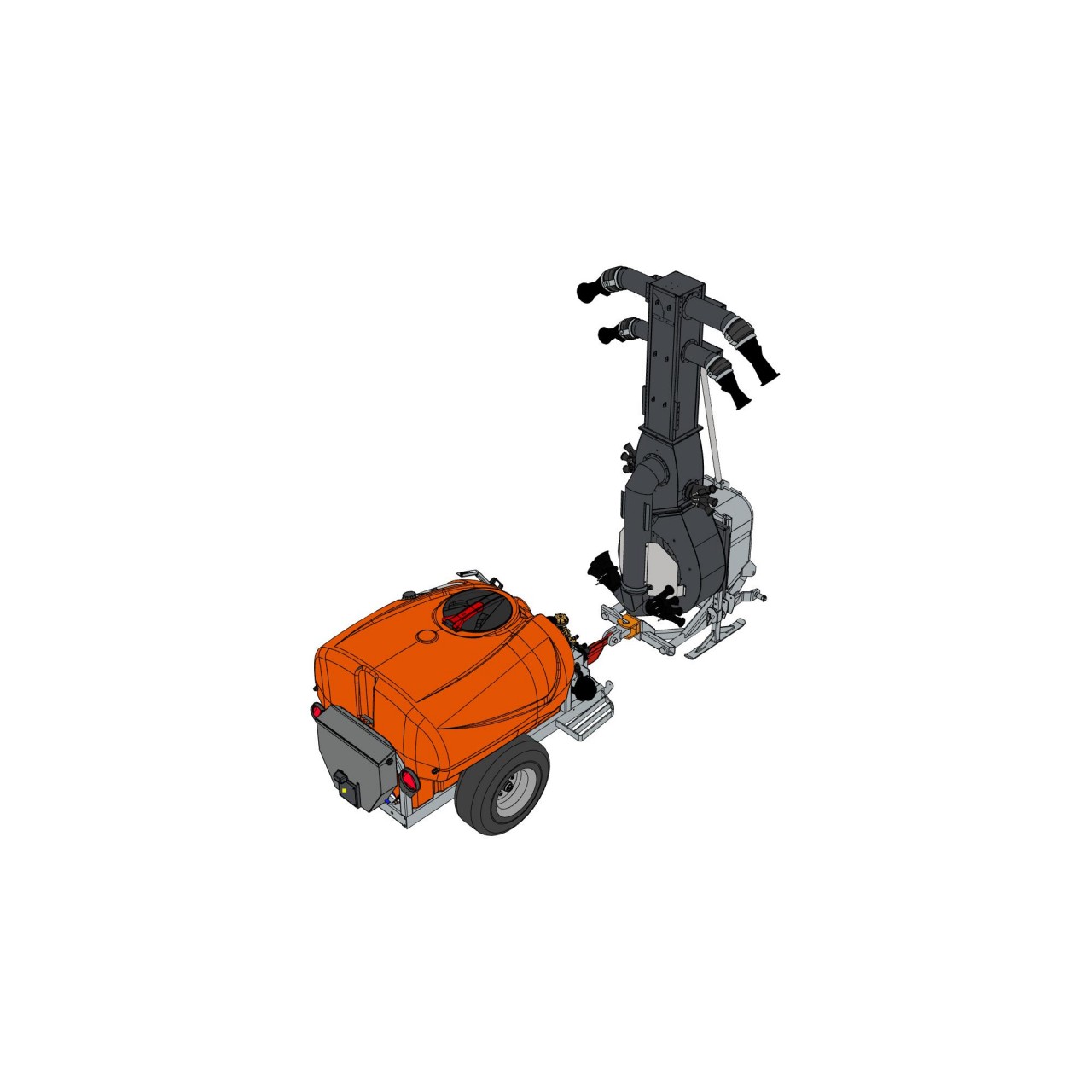

L e v a n t e m u l t i f i l a r e 2FG
General features of the product
- Tank in polyethylene
- Hand-washing tank
- Circuit-rinse tank
- Pump 100-120 in brass + oil engine
- Output filter
- Suction filter
- Control unit whit Computer Bravo 180
- Premixing basket
- Accessories control valves
- Single lid
- Galvanised steel frame
- Axle without brake
- Complete tank drain with valve
- Wheels 10.075-15
Fan unit features
- Low-volume nozzles
- 2-speed transmission
- Alluminium impeller with clutch
- Galvanized and painted fan unit for 2 rows
- Spin diameter: 500mm
- LED tail lights
- Bumper guard
- Cardan
Optional accessories available:
- Oversized wheels
- Braking axle with hydraulic brake
- Anti pollution ejector
- Sprayer control with ISOBUS system
- Electrostatic system
- 4.0
- Radio control
The electrostatic device is one of the most important innovations of the past few years to optimise spraying in the field, as it allows reducing drift and loss of product by up to 50%.
This technology can be used on our entire range of sprayers and mist blowers, both trailed and mounted.
Principles
Due to the electrostatic fields that form between the plants, which are good conductors, and the chemical cloud with electrostatic charge created by our machine’s distributors, the droplets, loaded with the active ingredients, are drawn to the plants, thus reducing drift even with wind.
Main advantages
- Reduced loss due to drift
- Even distribution over the leaf surface
- Increased work speed, as the product is drawn to the plants, even the higher parts.
TECHNICAL FEATURES
| Supply voltage | From 10 V to 15 V |
| Maximum absorbed current | 1A |
| Output voltage | From 20 KV to 22 KV direct voltage |
